AWS IoT Device Shadow Operations Demo

Introduction

This demo shows how to use the AWS IoT Device Shadow library to connect to the AWS Device Shadow Service. It uses the coreMQTT library to establish an MQTT connection with TLS (Mutual Authentication) to the AWS IoT MQTT Broker and the coreJSON parser to parse shadow documents it receives from the AWS Shadow service. The demo showcases some basic shadow operations, such as how to update a shadow document and how to delete a shadow document. The demo also shows how to register a callback function with the MQTT library to handle messages like the shadow

/update
and
/update/delta
messages that are sent from the AWS Device Shadow service.

This demo is intended only as a learning exercise because the request to update the shadow document (state) and the update response are done by the same application. In a realistic production scenario, an external application (e.g. an application running on a user's phone) would request an update of the state of the device remotely, even if the device is not currently connected. The device will acknowledge the update request when it is connected.

This demo project uses the FreeRTOS Windows port, so you can build and evaluate it with the free Community version of Visual Studioexternal_link on Windows without the need for any MCU hardware.

Source Code Organization

The demo project is called

shadow_device_operations_demo.sln
and can be found in the FreeRTOSexternal_link repository on GitHub in the following directory:

1FreeRTOS-Plus\Demo\AWS\Device_Shadow_Windows_Simulator\Device_Shadow_Demo

Configure the Demo Project

The demo uses the FreeRTOS-Plus-TCP TCP/IP stack, so follow the instructions provided for the TCP/IP starter project to:

  1. Install the pre-requisite components (such as WinPCap).

  2. Optionally set a static or dynamic IP address, gateway address and netmask.

  3. Optionally set a MAC address.

  4. Select an Ethernet network interface on your host machine.

  5. (Important!) Test your network connection before you attempt to run the Shadow demo.

All of these settings should be set in the Shadow demo project.

Configure the AWS IoT MQTT Broker Connection

In this demo you use an MQTT connection to the AWS IoT MQTT broker. This connection is configured in the same way as the MQTT mutual authentication demo.

Build the Demo Project

The demo project uses the free community edition of Visual Studioexternal_link. To build the demo:

  1. Open the Visual Studio solution file

    FreeRTOS-Plus\Demo\AWS\Device_Shadow_Windows_Simulator\Device_Shadow_Demo\shadow_main_demo.sln
    from within the Visual Studio IDE.

  2. Select 'build solution' from the IDE's 'build' menu.

Functionality

The demo creates a single application task that loops through a set of examples that demonstrate shadow

/update
and
/update/delta
callbacks to simulate toggling a remote IoT device's state. It sends a shadow update with the new
desired
state and waits for the IoT device to change its
reported
state in response to the new
desired
state. In addition, a shadow
/update
callback is used to print the changing shadow states. This demo also uses a secure MQTT connection to the AWS IoT MQTT Broker, and assumes there is a
powerOn
state in the device shadow. By default, the demo uses the classic unnamed shadow. Optionally
democonfigSHADOW_NAME
can be defined to select a named shadow.

The demo performs the following operations:

  1. Establish a MQTT connection by using the helper functions in

    shadow_demo_helpers.c
    .

  2. Assemble MQTT topic strings for IoT device shadow operations, using macros defined by the Device Shadow library.

  3. Publish to the MQTT topic used for deleting a device shadow to delete any existing device shadow.

  4. Subscribe to the MQTT topics for

    /update/delta
    ,
    /update/accepted
    and
    /update/rejected
    using helper functions in
    shadow_demo_helpers.c
    .

  5. Publish a desired state of

    powerOn
    using helper functions in
    shadow_demo_helpers.c
    . This will cause an
    /update/delta
    message to be sent to the device.

  6. Handle incoming MQTT messages in

    prvEventCallback
    , and determine whether the message is related to the device shadow by using a function defined by the Device Shadow library (
    Shadow_MatchTopicString
    ). If the message is a device shadow
    /update/delta
    message, then the main demo function will publish a second message to update the reported state to
    powerOn
    . If an
    /update/accepted
    message is received, verify that it has the same clientToken as previously published in the update message. That will mark the end of the demo.

The structure of the demo can be found in ShadowDemoMainExample.cexternal_link on GitHub.

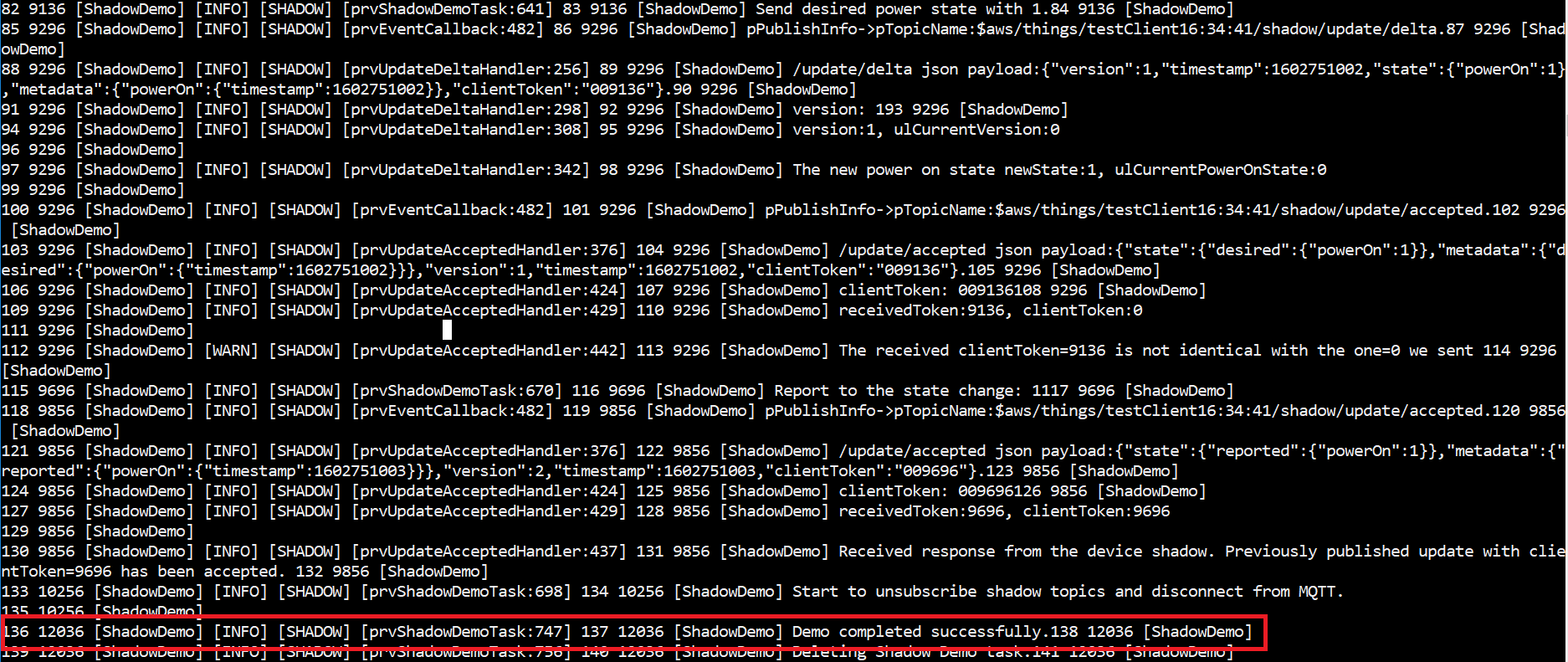

This screenshot shows the expected output when the demo executes correctly:

Click to enlarge

Connect to the AWS IoT MQTT Broker

To connect to the AWS IoT MQTT broker, we use the same method as

MQTTConnect()
in the MQTT mutual authentication demo.

Delete the Shadow Document

To delete the shadow document, call

xPublishToTopic
with an empty message, using macros defined by the Device Shadow library. This uses
MQTT_Publish
to publish to the
/delete
topic. An example showing how this is done in the
prvShadowDemoTask
can be found in ShadowDemoMainExample.cexternal_link on GitHub.

Subscribe to Shadow Topics

Subscribe to the Device Shadow topics to receive notifications from the AWS IoT broker about shadow changes. The Device Shadow topics are assembled by macros defined in the Device Shadow library. An example showing how this is done in the

prvShadowDemoTask
function can be found in ShadowDemoMainExample.cexternal_link on GitHub.

Send Shadow Updates

To send a shadow update, the demo calls

xPublishToTopic
with a message in JSON format, using macros defined by the Device Shadow library. This uses
MQTT_Publish
to publish to the
/delete
topic. An example showing how this is done in the
prvShadowDemoTask
function can be found in ShadowDemoMainExample.cexternal_link on GitHub.

Handle Shadow Delta Messages and Shadow Update Messages

The user callback function, that was registered to the coreMQTT Client library using the function

, will notify us about an incoming packet event. The code for an example callback function can be found in ShadowDemoMainExample.cexternal_link on GitHub.

The callback function confirms the incoming packet is of type

MQTT_PACKET_TYPE_PUBLISH
, and uses the Device Shadow Library API
Shadow_MatchTopic
to confirm that the incoming message is a shadow message.

If the incoming message is a shadow message with type

ShadowMessageTypeUpdateDelta
, then we call
prvUpdateDeltaHandler
to handle this message. The handler
prvUpdateDeltaHandler
uses the coreJSON library to parse the message to get the delta value for the
powerOn
state and compares this against the current device state maintained locally. If these are different, the local device state is updated to reflect the new value of the
powerOn
state from the shadow document. The code for
prvUpdateDeltaHandler
can be found in ShadowDemoMainExample.cexternal_link on GitHub.

If the incoming message is a shadow message with type

ShadowMessageTypeUpdateAccepted
, then we call
prvUpdateAcceptedHandler
to handle this message. The handler
prvUpdateAcceptedHandler
parses the message using the coreJSON library to get the
clientToken
from the message. This handler function checks that the client token from the JSON message matches the client token used by the application. If it doesn't match, the function logs a warning message. The code for
prvUpdateAcceptedHandler
can be found in ShadowDemoMainExample.cexternal_link on GitHub.
